HOW TO USE

MCON

GUIDE

USING YOUR CONTROLLER

THE BASICS

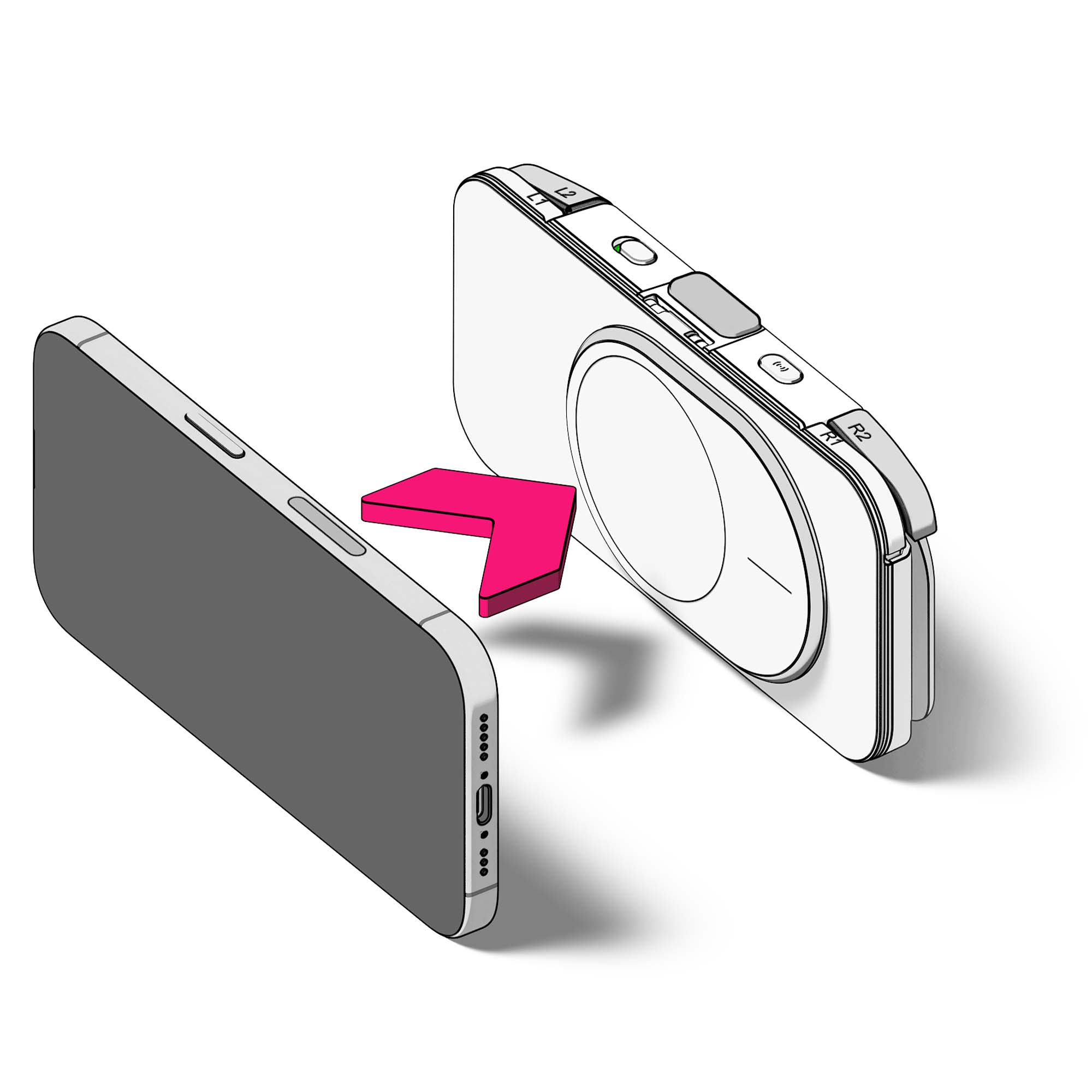

ATTACH YOUR PHONE

Set your MagSafe phone or case onto MCON and let the magnets do the work. If your phone feels loose, turn it 180 degrees.

Don't have MagSafe? Scroll down to the ANDROID INSTALL tab.

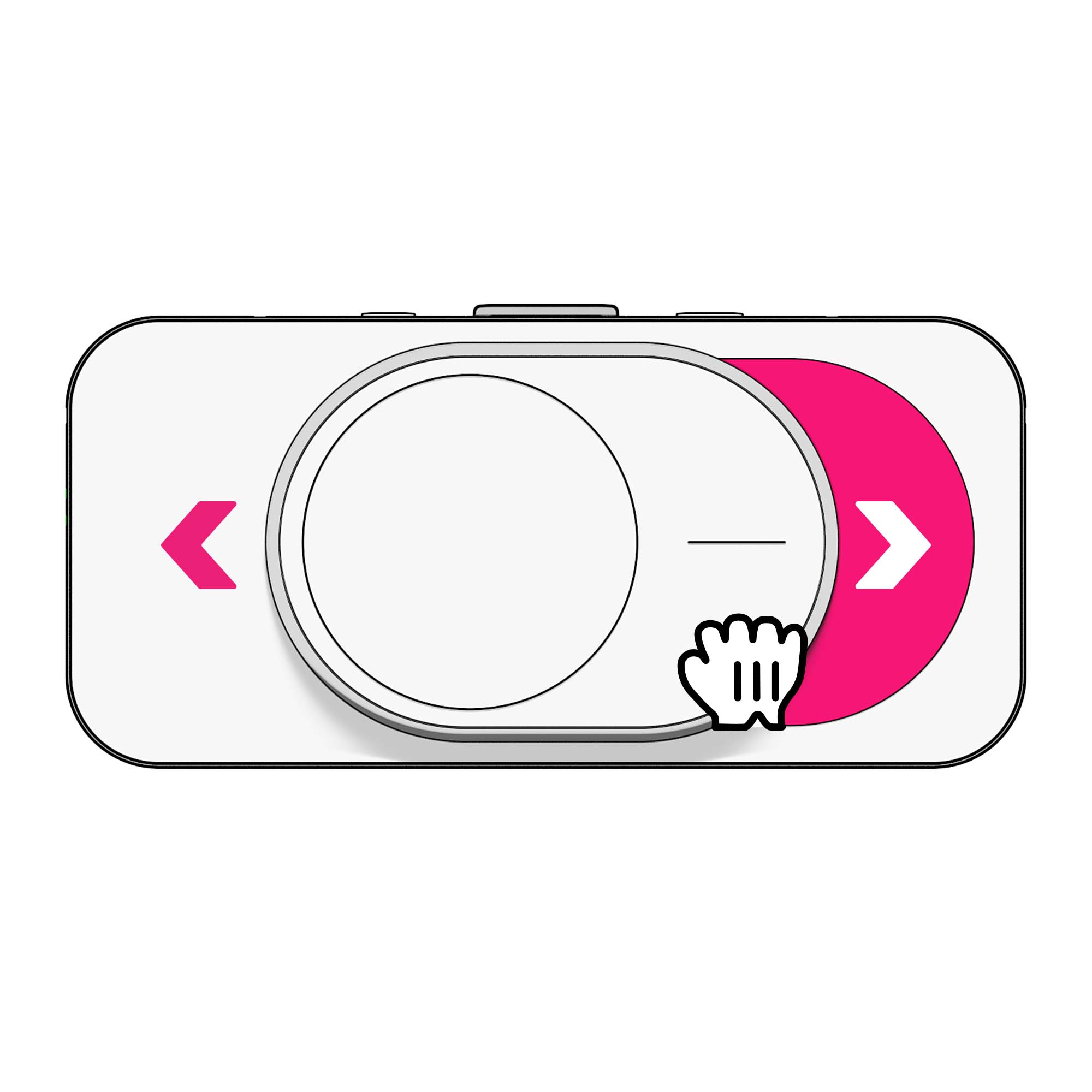

CENTER YOUR SCREEN

If your screen is off center, remove your phone and slide the magnetic mount left or right. This adjustment is only personal preference.

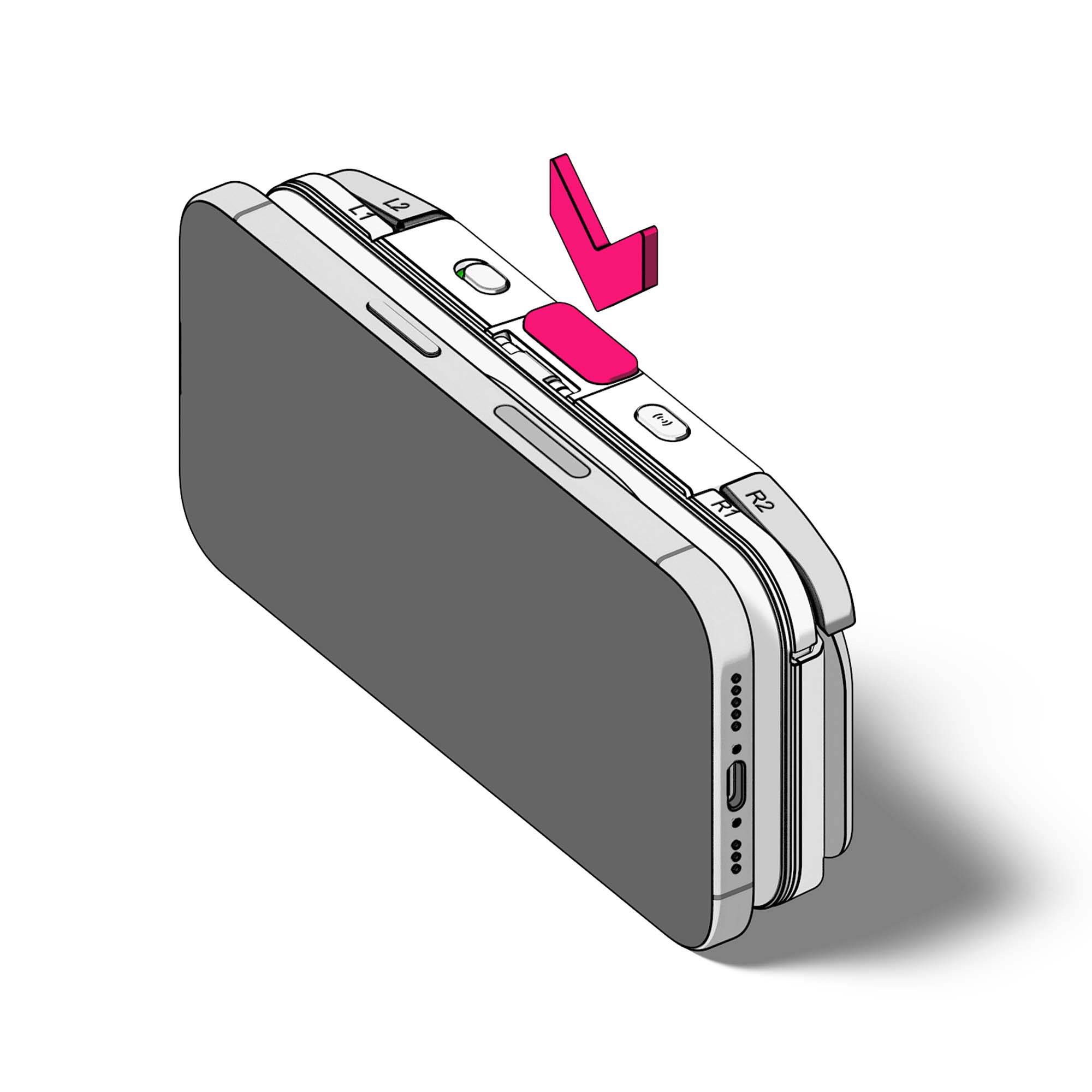

PRESS THE BIG BUTTON

Firmly grip your MCON and press the Quick Launch button. Be wary of tilting the controller downward when activating MCON, as gravity combined with the spring force can eject your device.

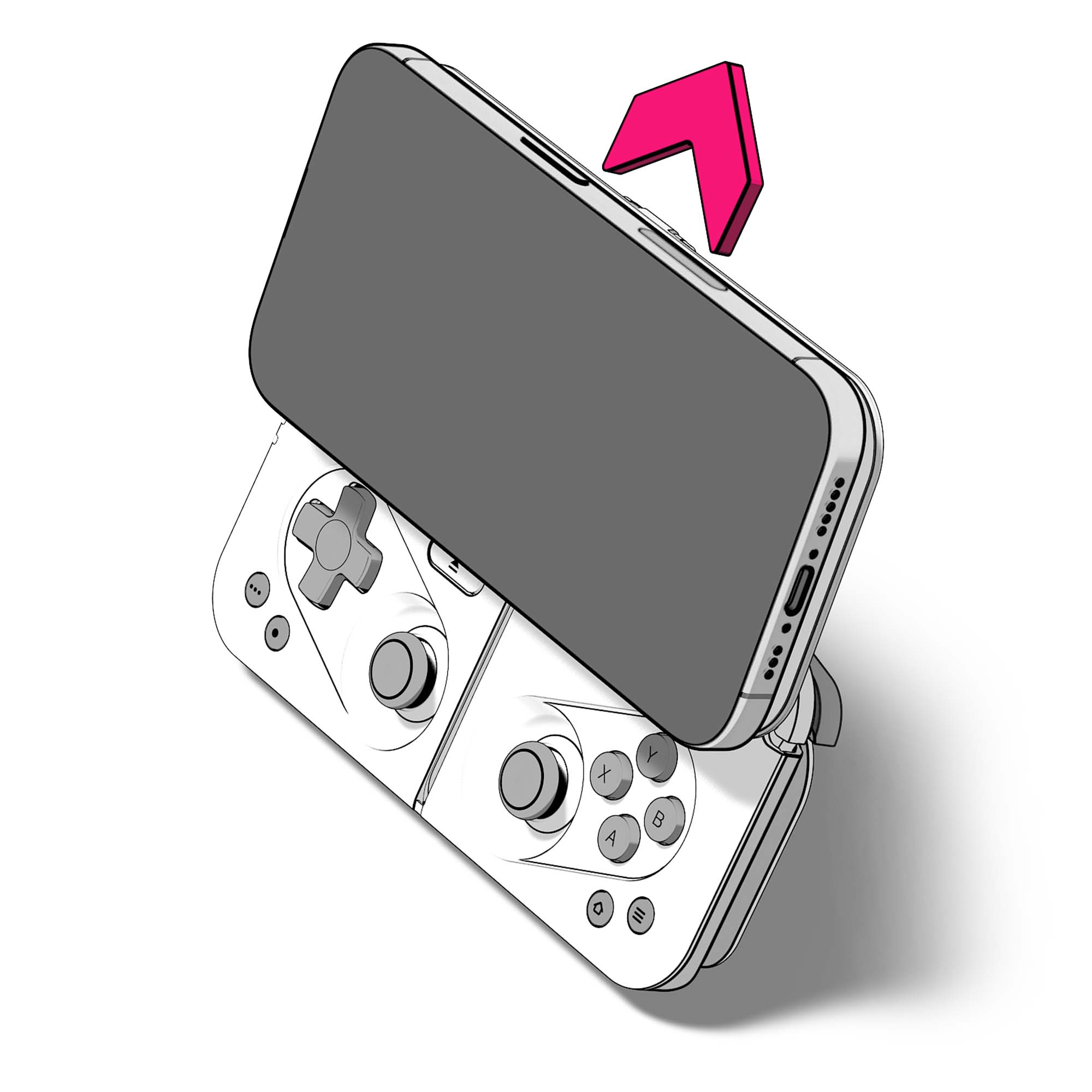

YOU'RE READY TO GAME.

MCON slides into action! MCON can now be powered on - it automatically sleeps when closed.

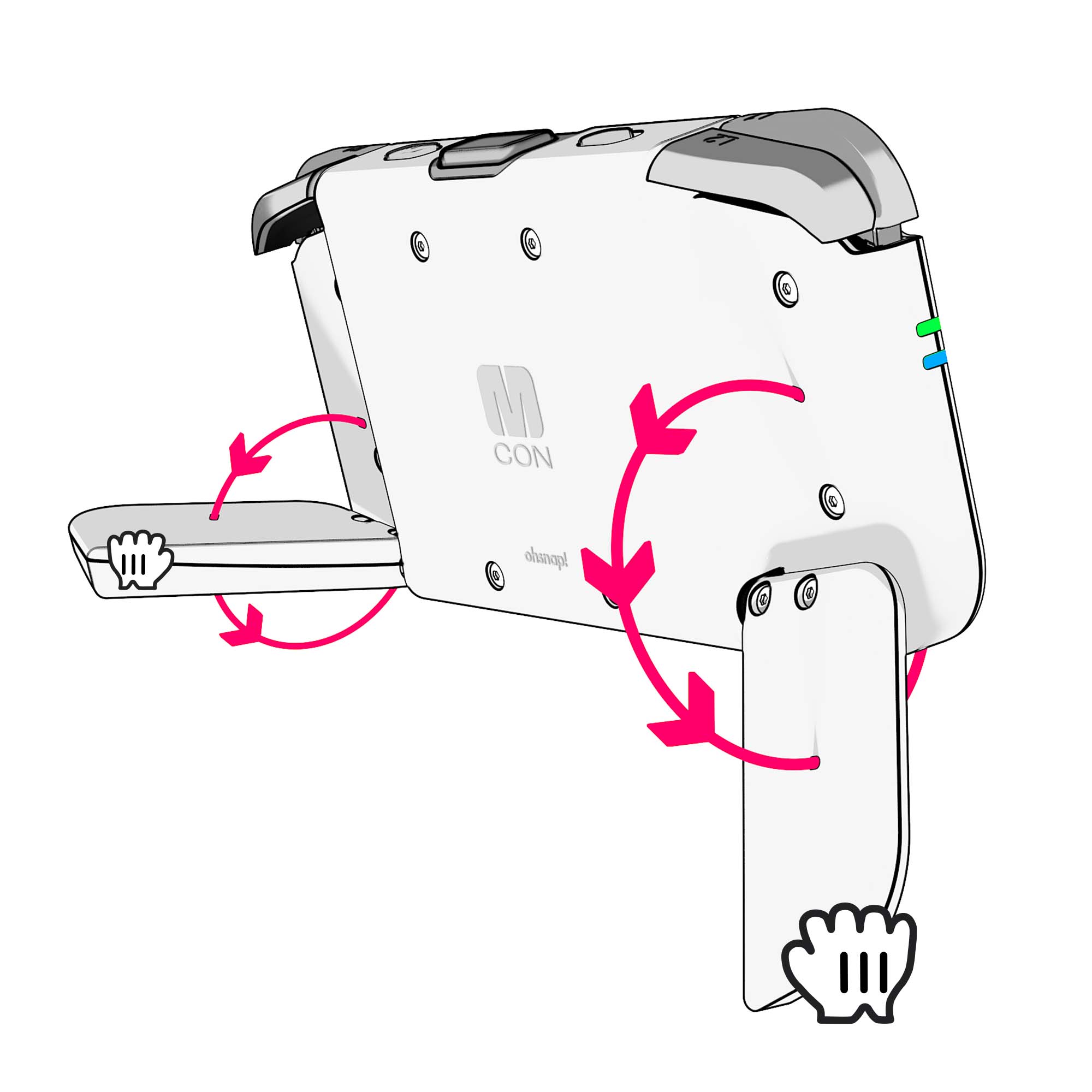

ACTIVATE THE HANDLES

Grab the handles near the triggers for the best leverage, then pull straight down - not inward. The handles pivot from the USB-C side of the controller.

EJECT & KICKSTAND

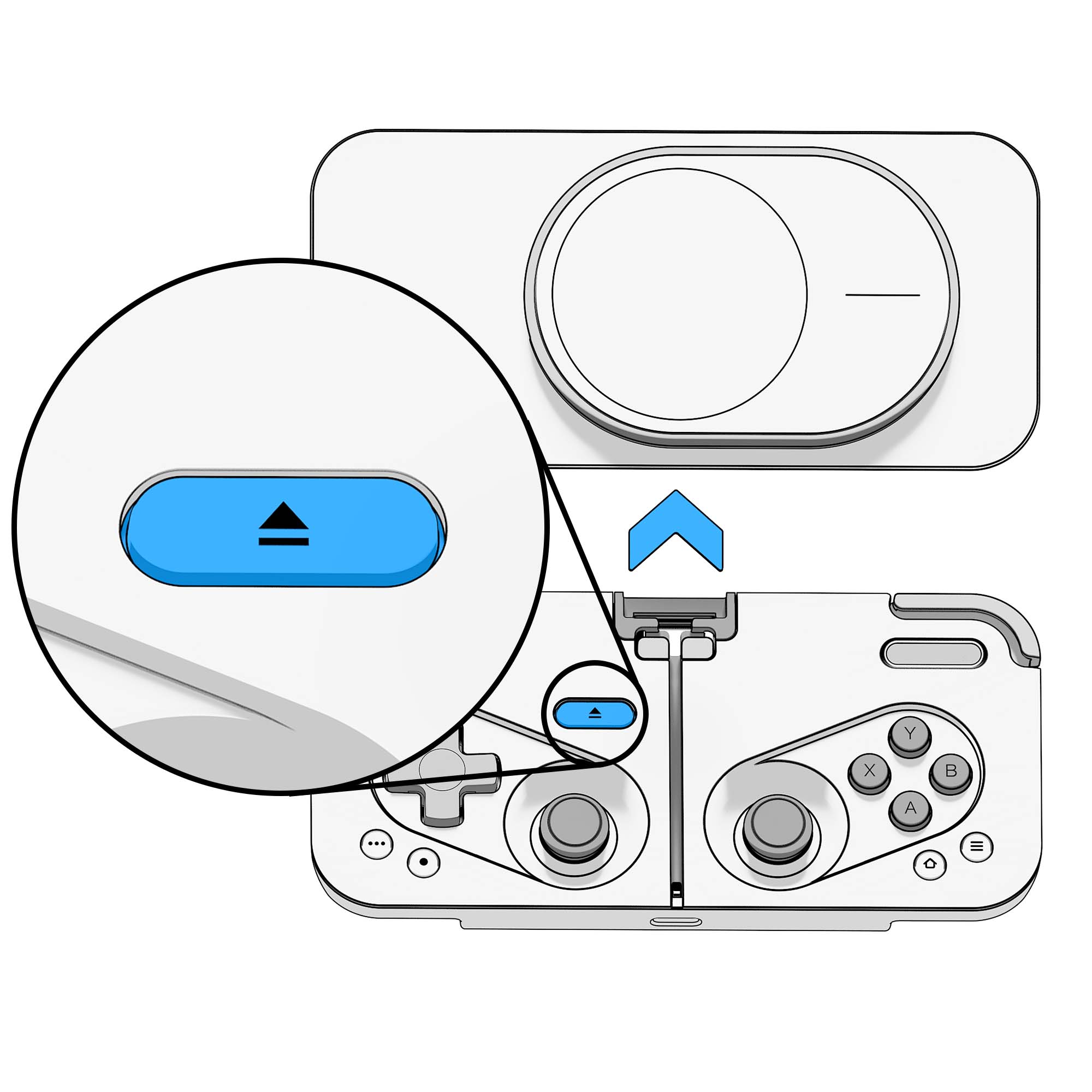

HOLD EJECT AND PULL COVER

To eject, press and hold the eject button and pull the cover straight out.

PULL THE KICKSTAND UNTIL IT LOCKS

The kickstand will lock into the optimal position. Reattach your phone if necessary. You're ready to game on any tabletop.

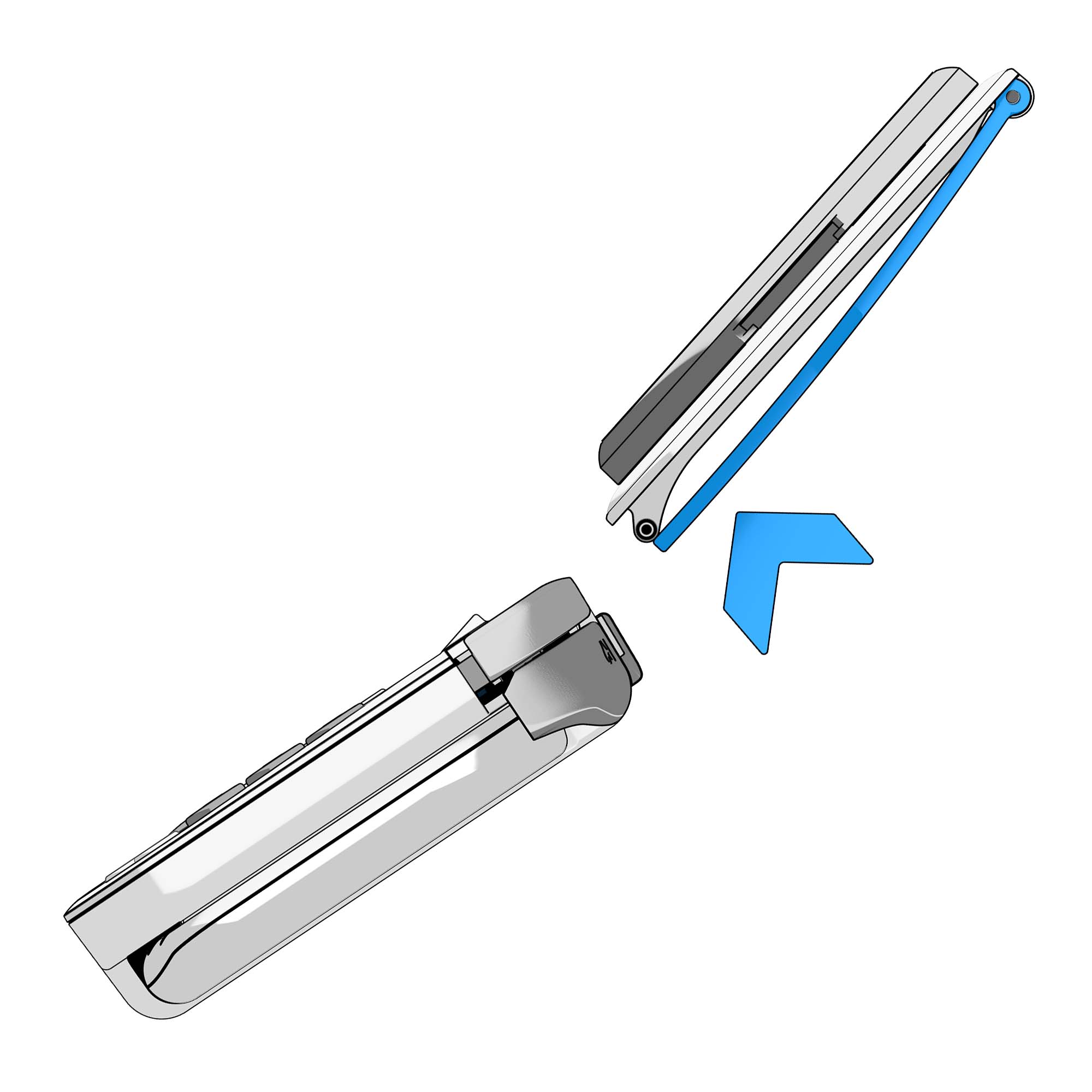

TO REINSERT, CLOSE KICKSTAND

Click the kickstand back into it's closed position.

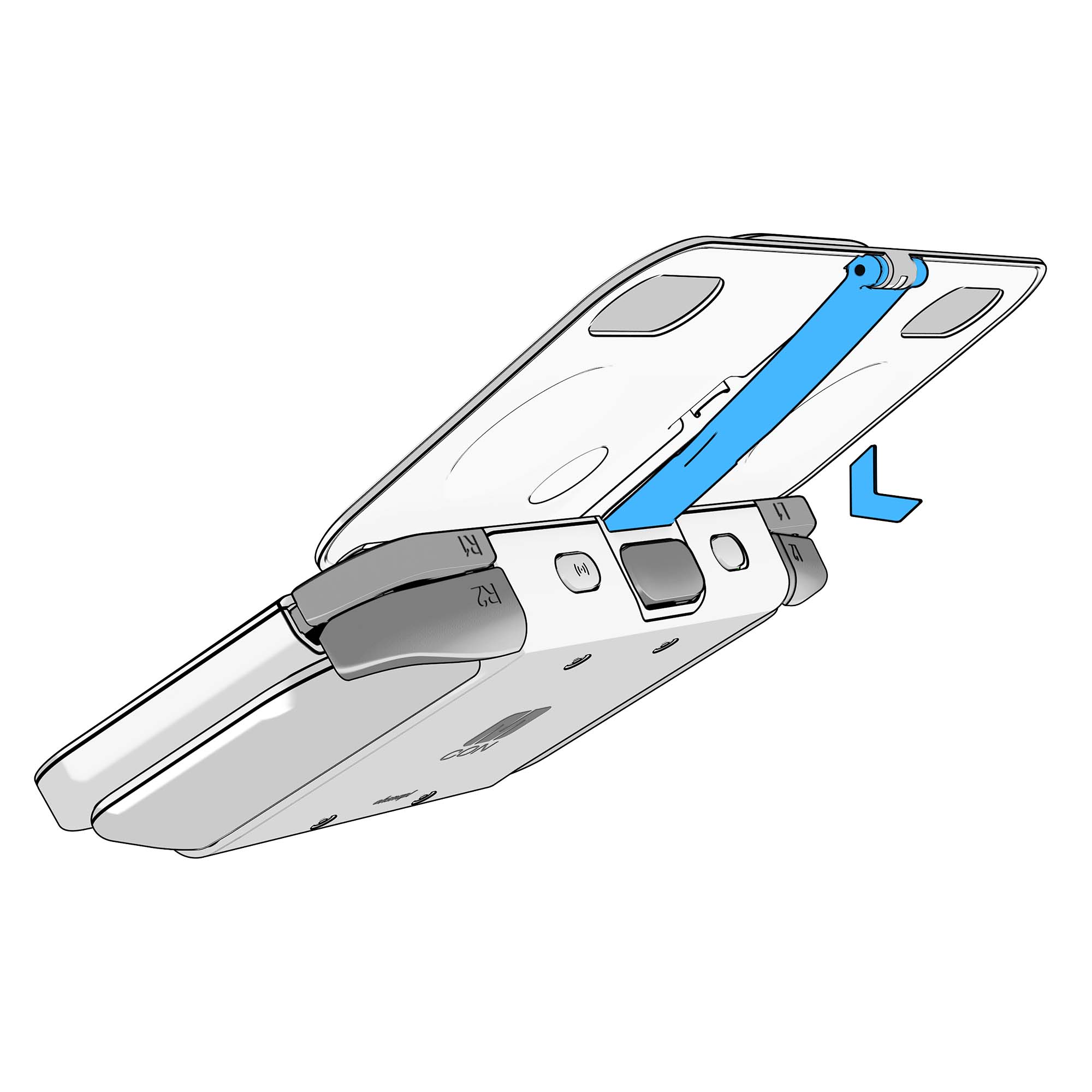

SLOT KICKSTAND BACK IN

Slide the kickstand back into the body of the controller. If the cover is floppy - do not force it closed. Eject the cover and restart the process. Ensure the kickstand stays fully closed when you are reinserting it.

WIRELESS PAIRING

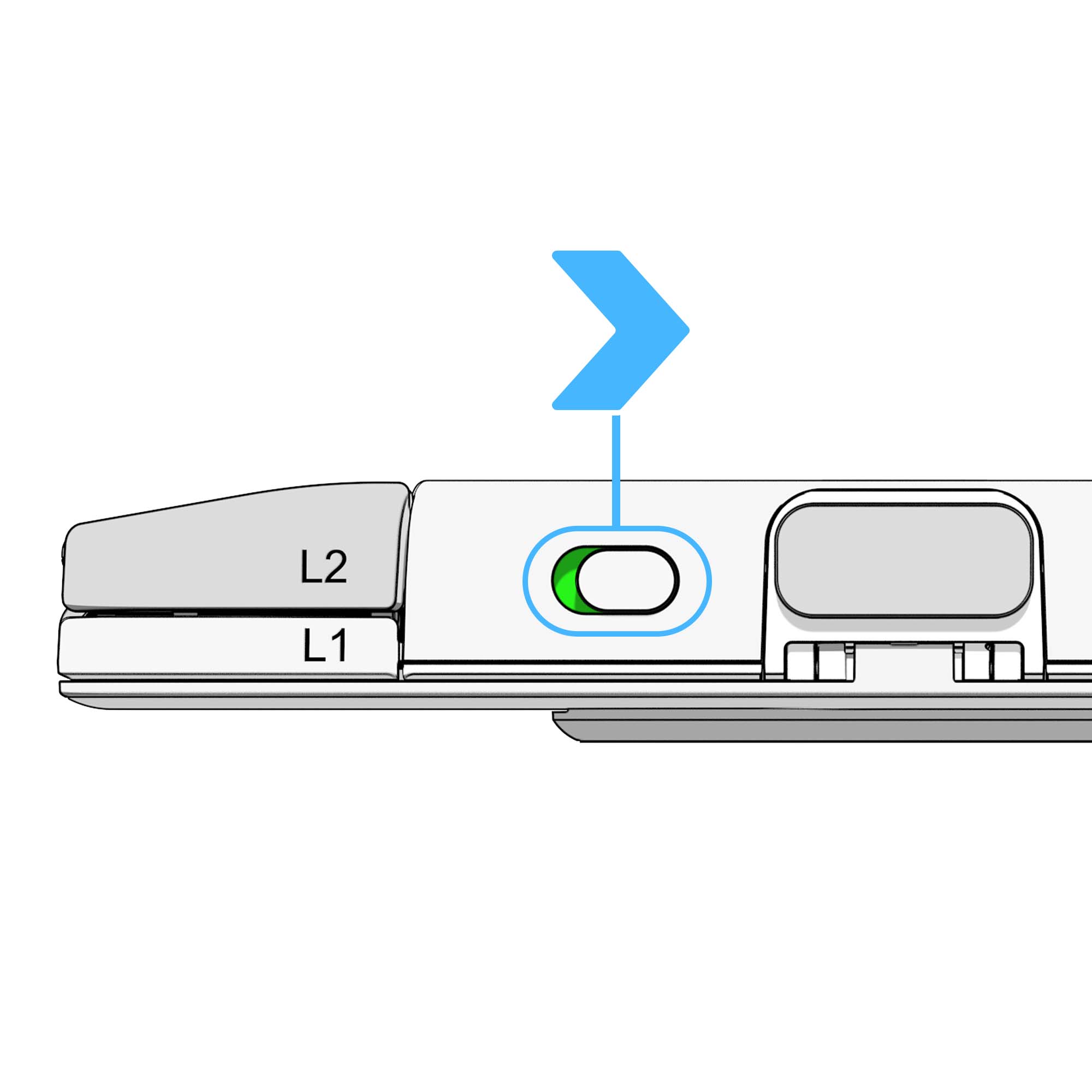

SLIDE POWER SWITCH ON

Your controller is ON or in SLEEP when you can see GREEN.

OPEN CONTROLLER TO TURN ON

When closed, MCON automatically sleeps to save battery. Press the Quick Launch button to slide your controller open.  Now your controller is ON.

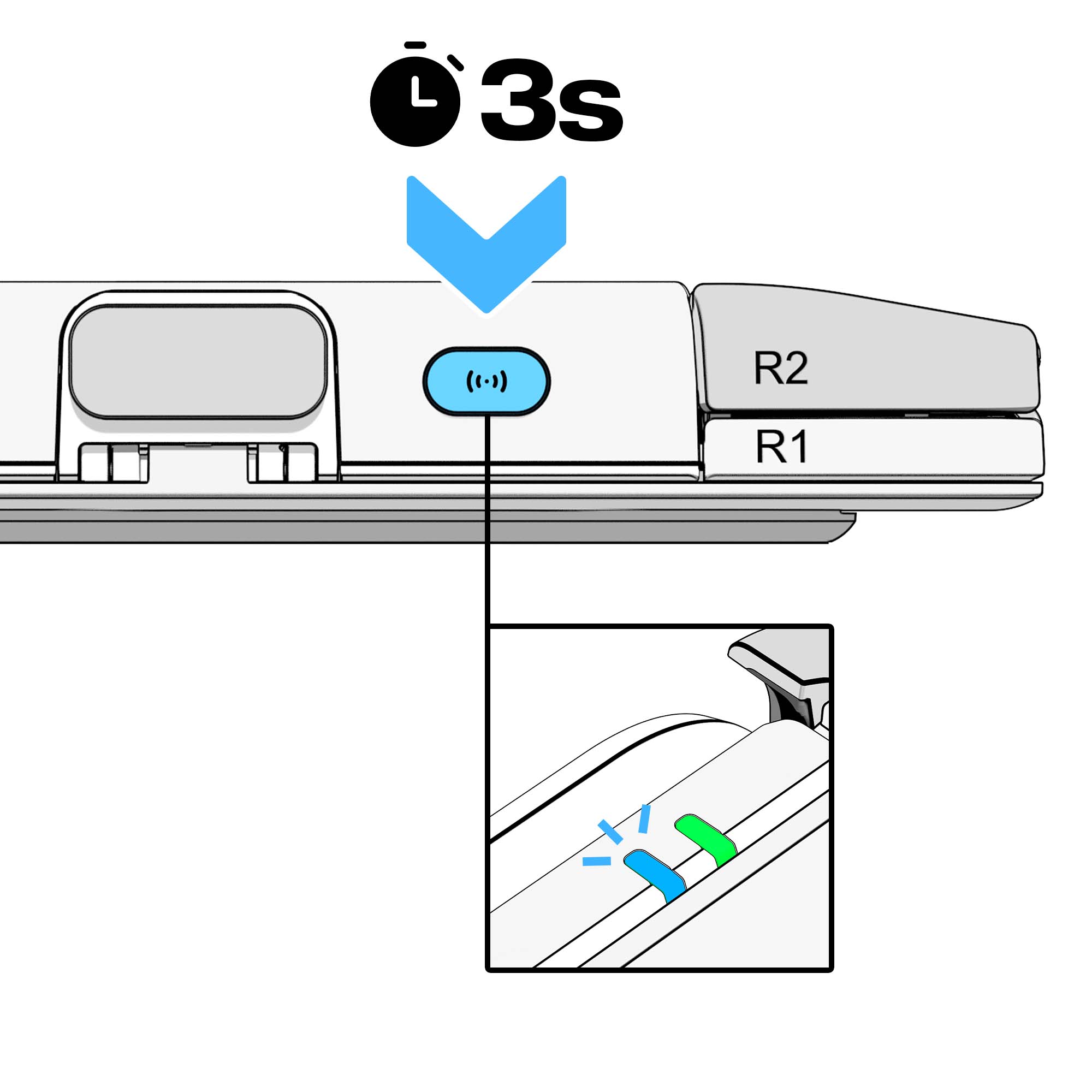

HOLD PAIR UNTIL LIGHT RAPIDLY FLASHES

Hold the pair for 3 seconds, or until the bottom LED starts flashing rapidly blue.

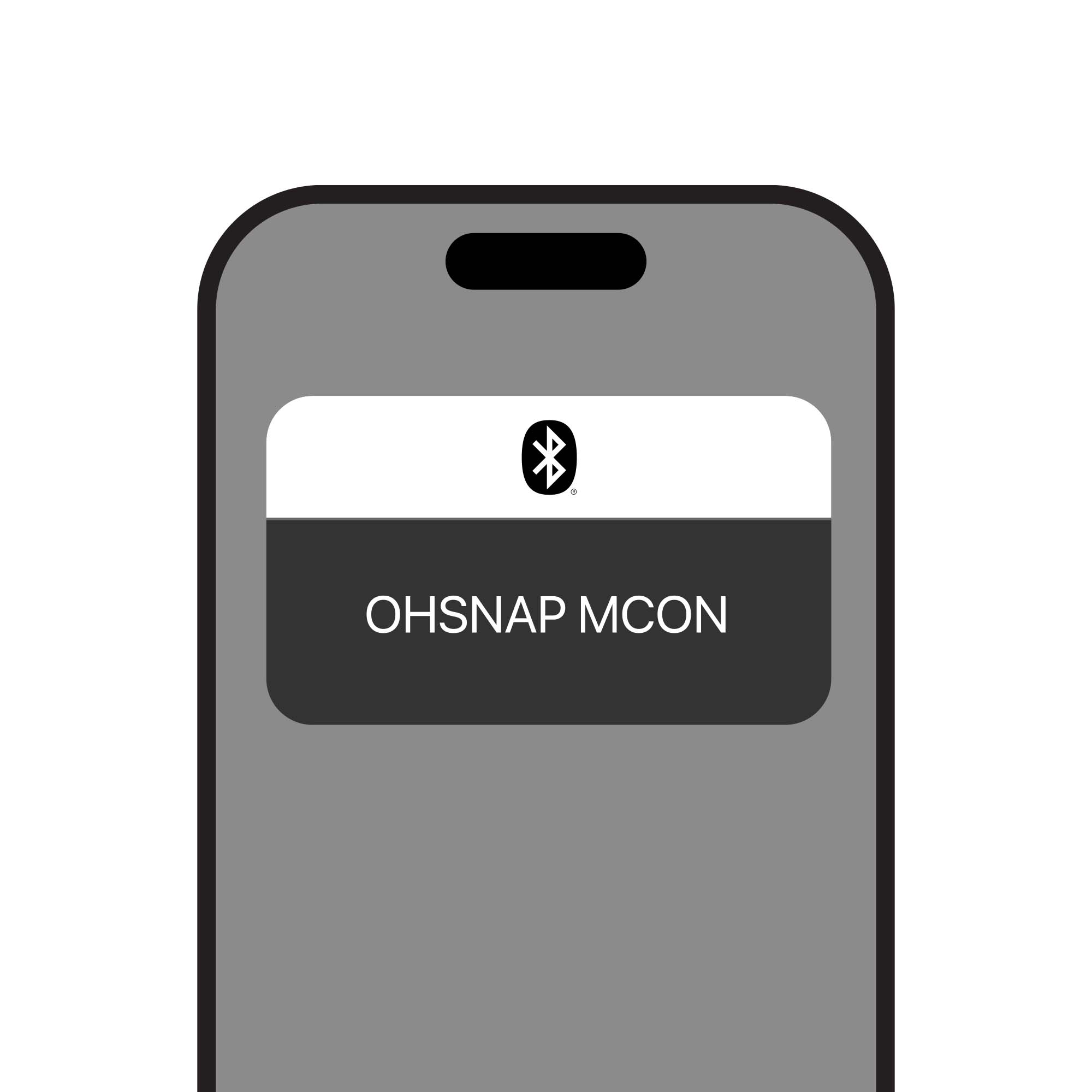

SELECT MCON IN YOUR BLUETOOTH SETTINGS

MCON will show up in your devices Bluetooth menu, tap it to pair. Having issues? Check out our step-by-step troubleshooting portal.

MULTI PAIR

Title

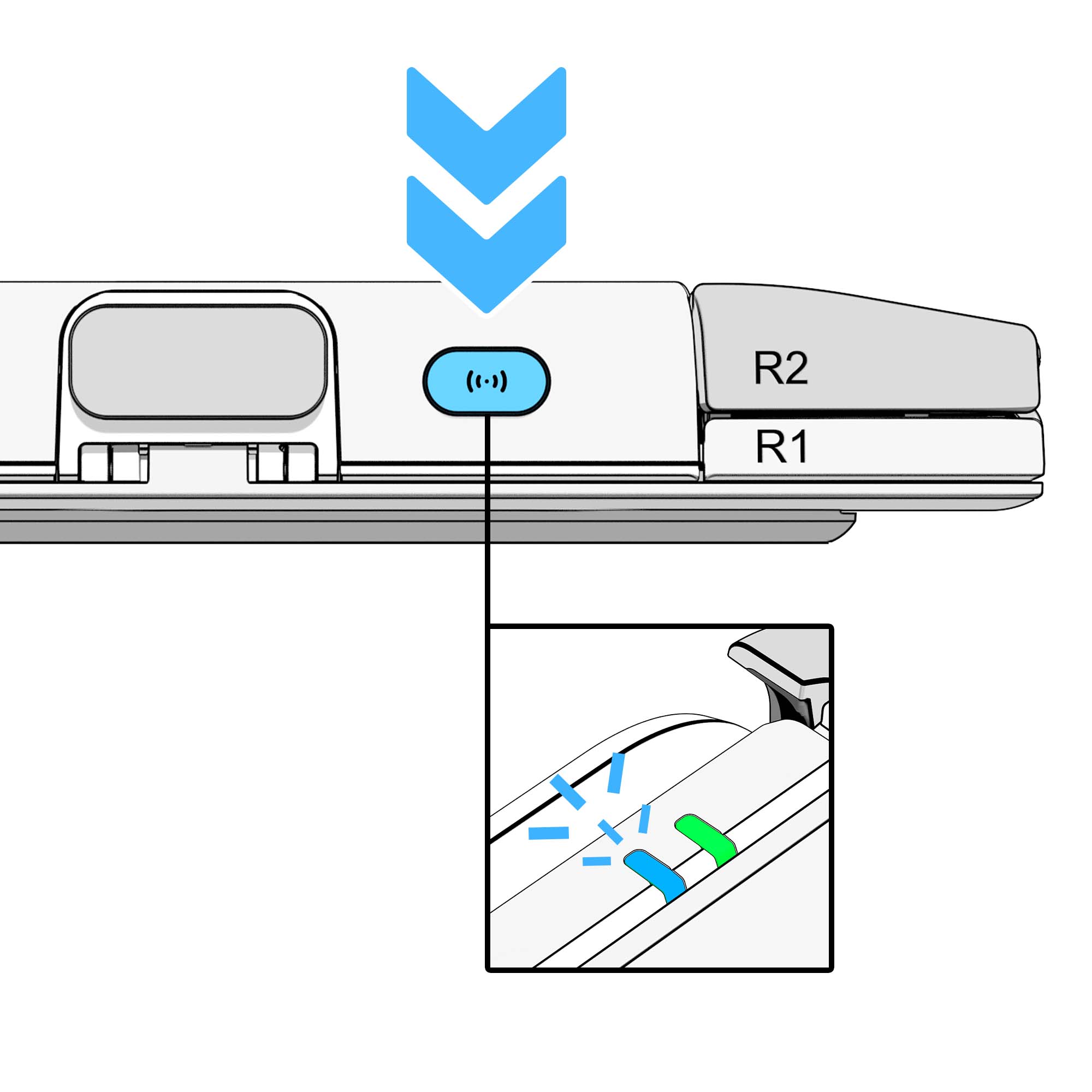

DOUBLE TAP PAIR TO SWITCH PAIR SLOT

When you double tap the pair button, MCON will switch to a different pair slot. This swap takes about 2 seconds. The blue LED will then flash the number of times corresponding to the pair slot.

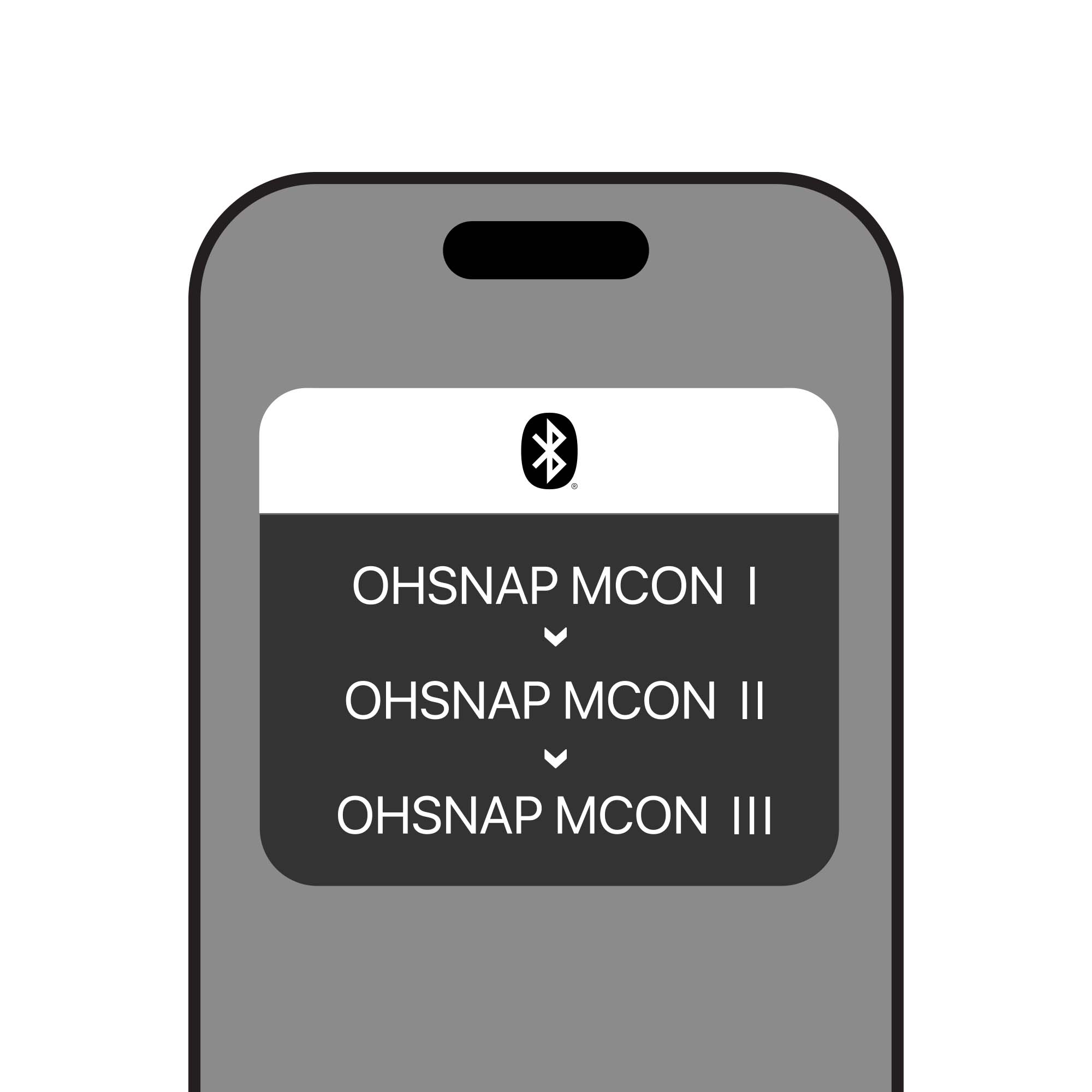

THE NUMBER CORRESPONDS TO MCON'S PAIR SLOT

MCON will appear in your device's Bluetooth settings with the pair slot number. For example: OHSNAP MCON I, OHSNAP MCON II, and OHSNAP MCON III.

ANDROID INSTALL

WE RECOMMEND USING A MAGSAFE CASE WHEN POSSIBLE.

These are available for almost all Android phones and ensure better experience with MCON and wireless chargers.

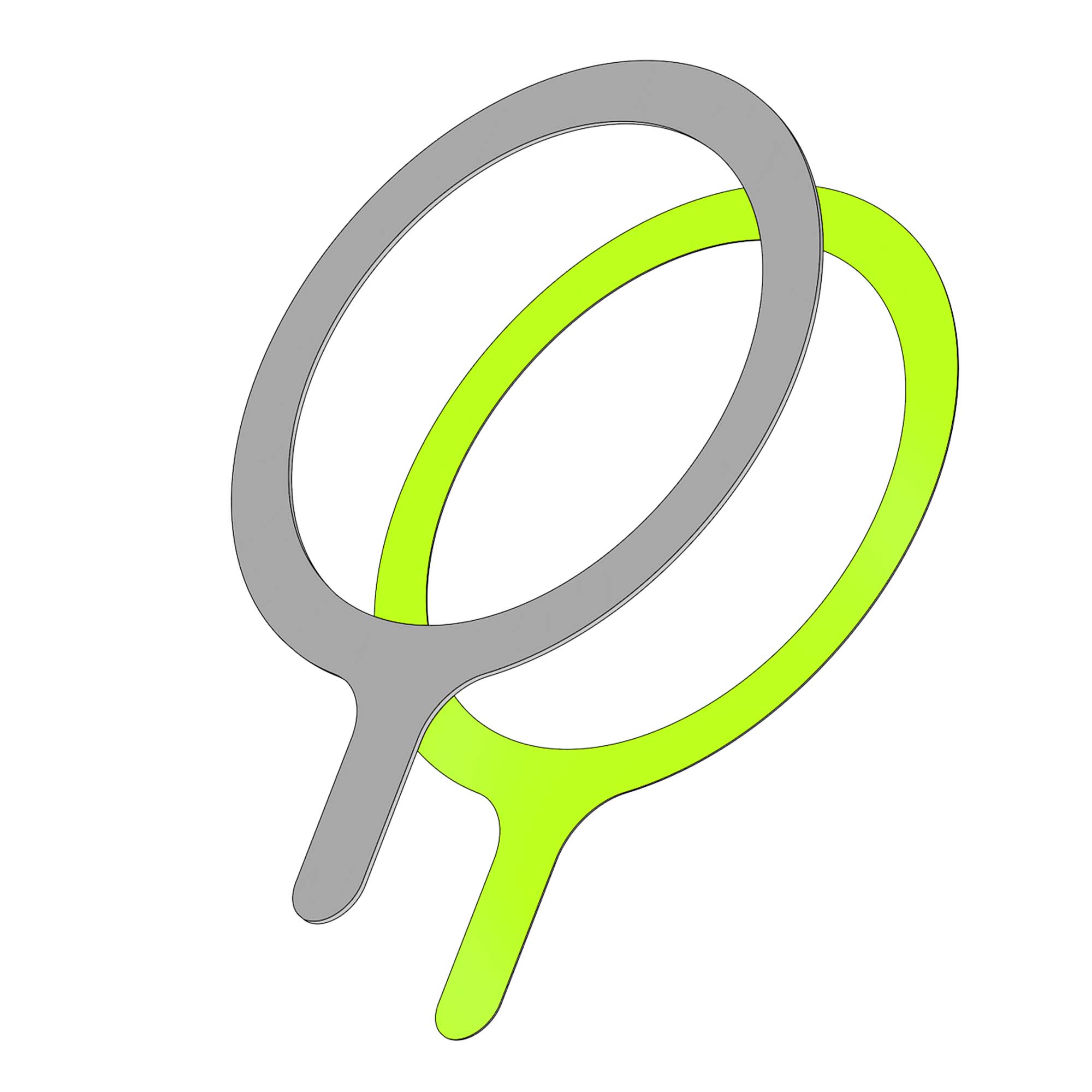

REMOVE ADAPTER LINING

Grab the MagSafe adapter ring from your box and remove the adhesive liner.

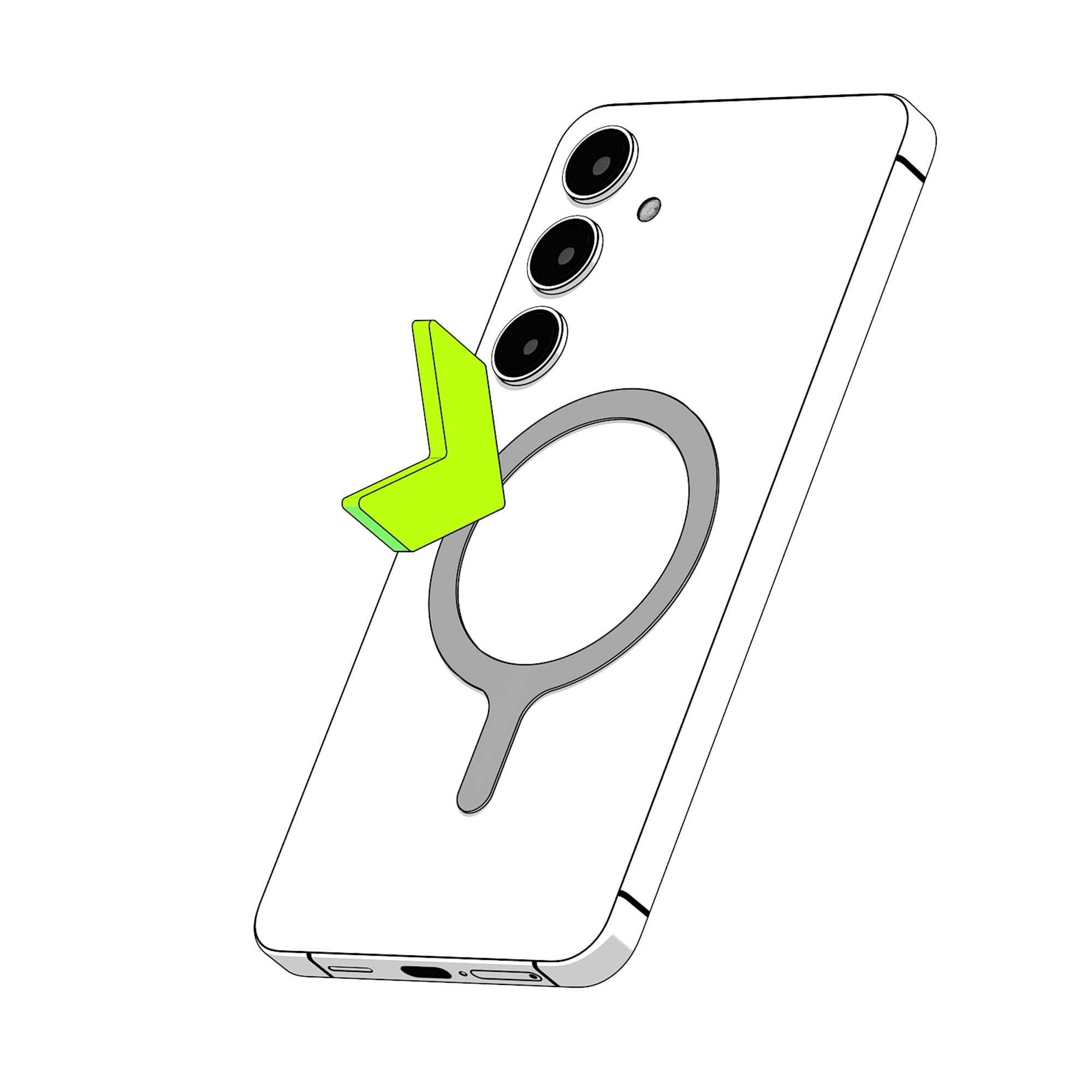

APPLY TO CENTER OF YOUR PHONE

Place the adapter as close to the center of the back of your phone as possible, both vertically and horizontally. The further off center, the worse wireless charging performance will be. Let the adhesive cure for 24 hours before attaching MCON.

PRO CONTROLS & MODES

INPUT MODES & BUTTON SETTINGS

MODE

HOLD UNTIL LIGHT FLASHES

2.4GHz MODE (DOCK & KEYCAST)

X-INPUT (DEFAULT)

D-INPUT (ANDROID LEGACY & LINUX)

DS4 INPUT (Unofficial Playstation)

NS INPUT (Unofficial Nintendo Switch)

SWAP A-B & X-Y (XBOX TO NINTENDO STYLE)

JOYSTICK & TRIGGER SETTINGS

JOYSTICK DEADZONES: ON / OFF

Deadzone off: LED blinks 2x blue

Deadzone on (default): LED blinks 2x green



To activate: press buttons simultaneously

TRIGGERS: ANALOG / DIGITAL
Digital Trigger: LED blinks 2x red
Analog Trigger (default): LED blinks 2x green



To activate: Hold buttons for 2 seconds

GYROSCOPE SETTINGS

MAP GYRO TO LEFT JOYSTICK (RACING)

Mode on/off: LED blinks 2x blue



To activate: press buttons simultaneously

MAP GYRO TO RIGHT JOYSTICK (AIMING)

Mode on/off: LED blinks 2x blue



To activate: press buttons simultaneously

OTHER CONTROLLER SHORTCUTS

ADJUST LED BRIGHTNESS

Cycle between bright & dim modes



To activate: press buttons simultaneously

CALIBRATION & RESET

FACTORY RESET

RESET CONTROLS & MAPPINGS

Resets the controller without erasing paired devices.



To activate: Hold buttons for 5 seconds, LED flashes 2x green.

FACTORY RESET

Erases all controller settings and paired devices.



To activate: Hold  buttons for 5 seconds, LED blinks 3x green.

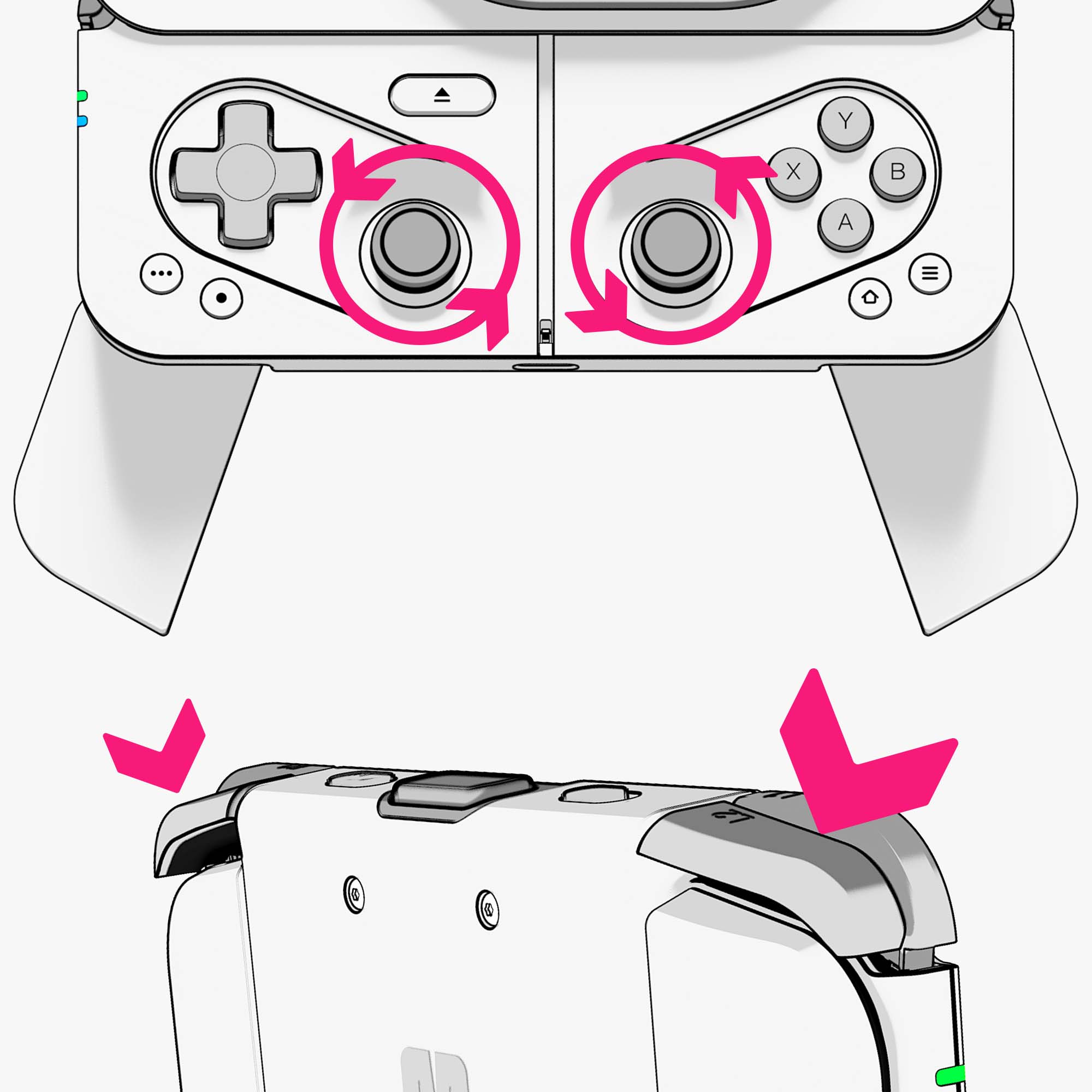

RECALIBRATE JOYSTICKS & TRIGGERS

TO RECALIBRATE:

1. Hold button shortcut for 2 seconds, LED will slowly flash white.

2. Fully rotate joysticks 2-3 times at their max range.

3. Slowly press the triggers 2-3 times from fully depressed to fully pressed.

4. Press A to finish. White LED will turn off.

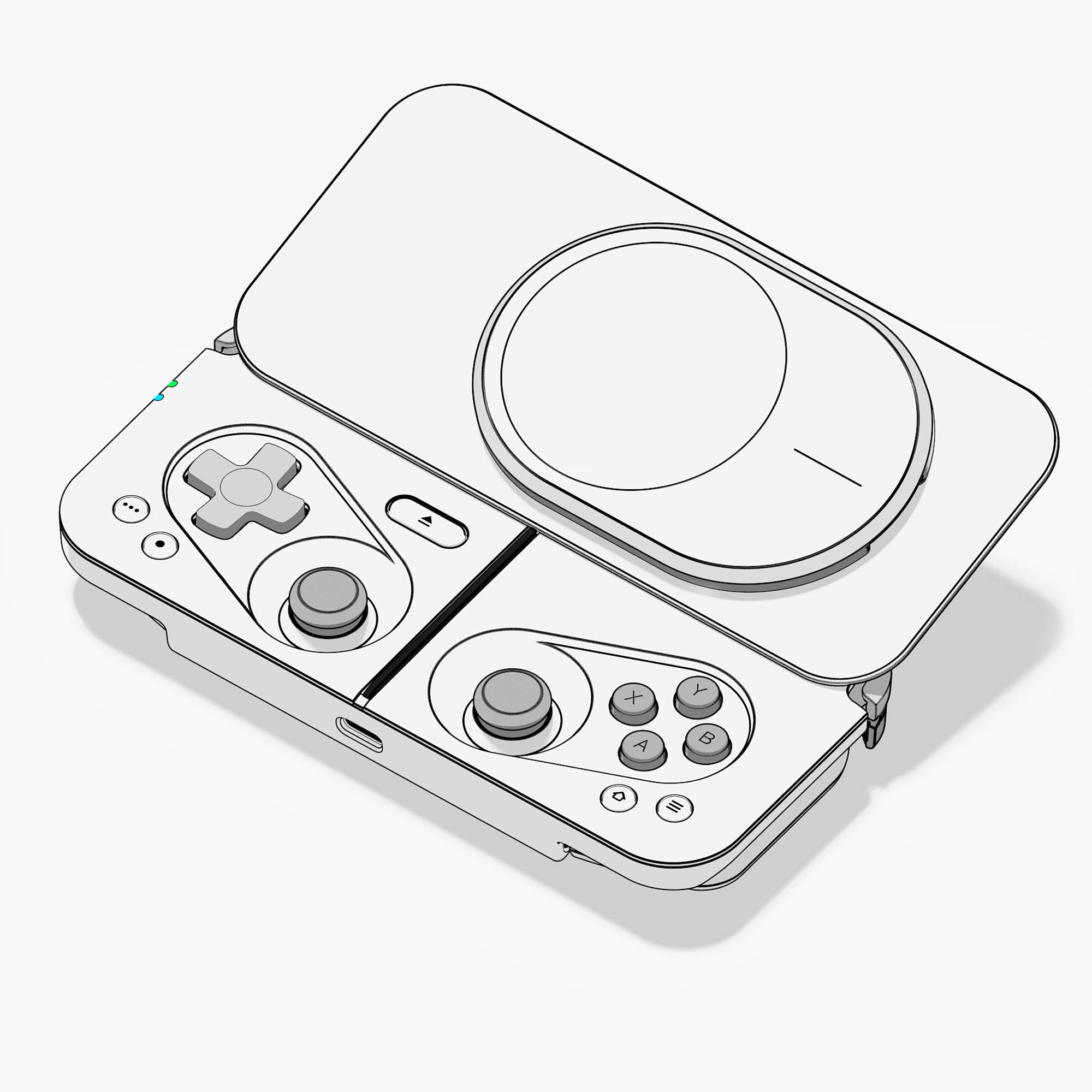

RECALIBRATE GYROSCOPE

TO RECALIBRATE:

1. Place controller on a flat surface.

2. Hold button shortcut for 2 seconds, bottom LED will flash red and blue.

3. Bottom LED returns to normal when complete

FAQs

My power switch is "on" but the LEDs aren't on?

When closed, MCON automatically sleeps to save battery. Press the Quick Launch button to slide your controller open.  Now your controller is ON. MCON will also automatically sleep after 3 minutes, press A/B/X/Y/Home to wake it.

How do I know how much charge my MCON has?

The top LED is always on to indicate power:

30 - 100% = GREEN

10 - 29% = YELLOW

0 - 9% = RED

How do I know if my MCON is charging?

The Top LED will breath when charging.

Fully Charged = OFF. To check, reconnect charger - LED will stay GREEN for 2 seconds.

30 - 100% = GREEN

10 - 29% = YELLOW

0 - 9% = RED

How do I wake my controller?

If your controller is open but the LEDs are off, press A/B/X/Y or Home to wake your controller.

What are the polling rates in different modes?

- Bluetooth Mode: ≥120hz

- 2.4Ghz Mode: ≥250hz

- Wired Mode: ≥1000hz on PC, ≥250Hz on Android
