HOW TO USE

KEY CAST

PLUG IN

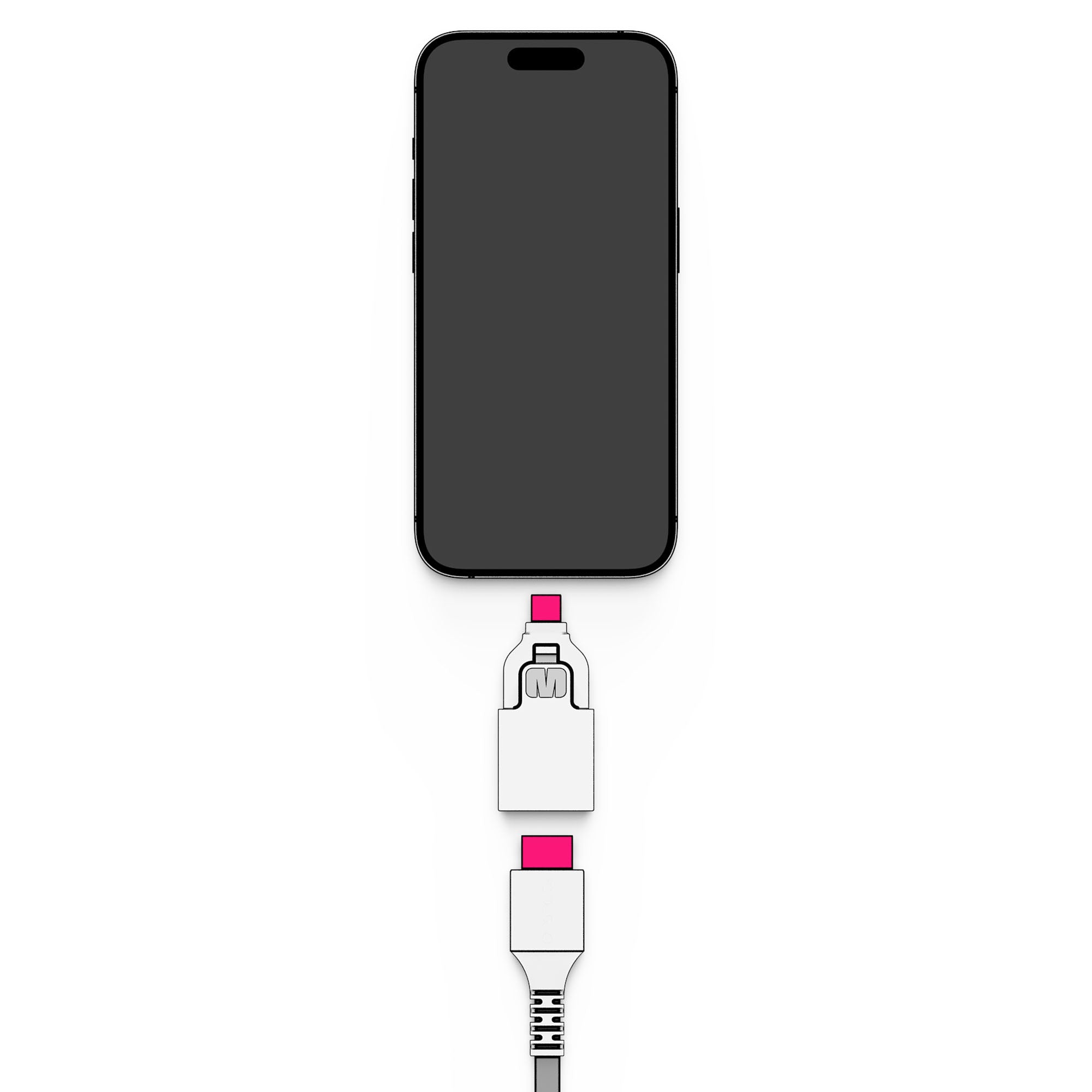

Plug an HDMI 2.1 cable into Key Cast, then plug Key Cast into your phone. Use our cable (linked above) for guaranteed compatibility and higher framerates.

CAST

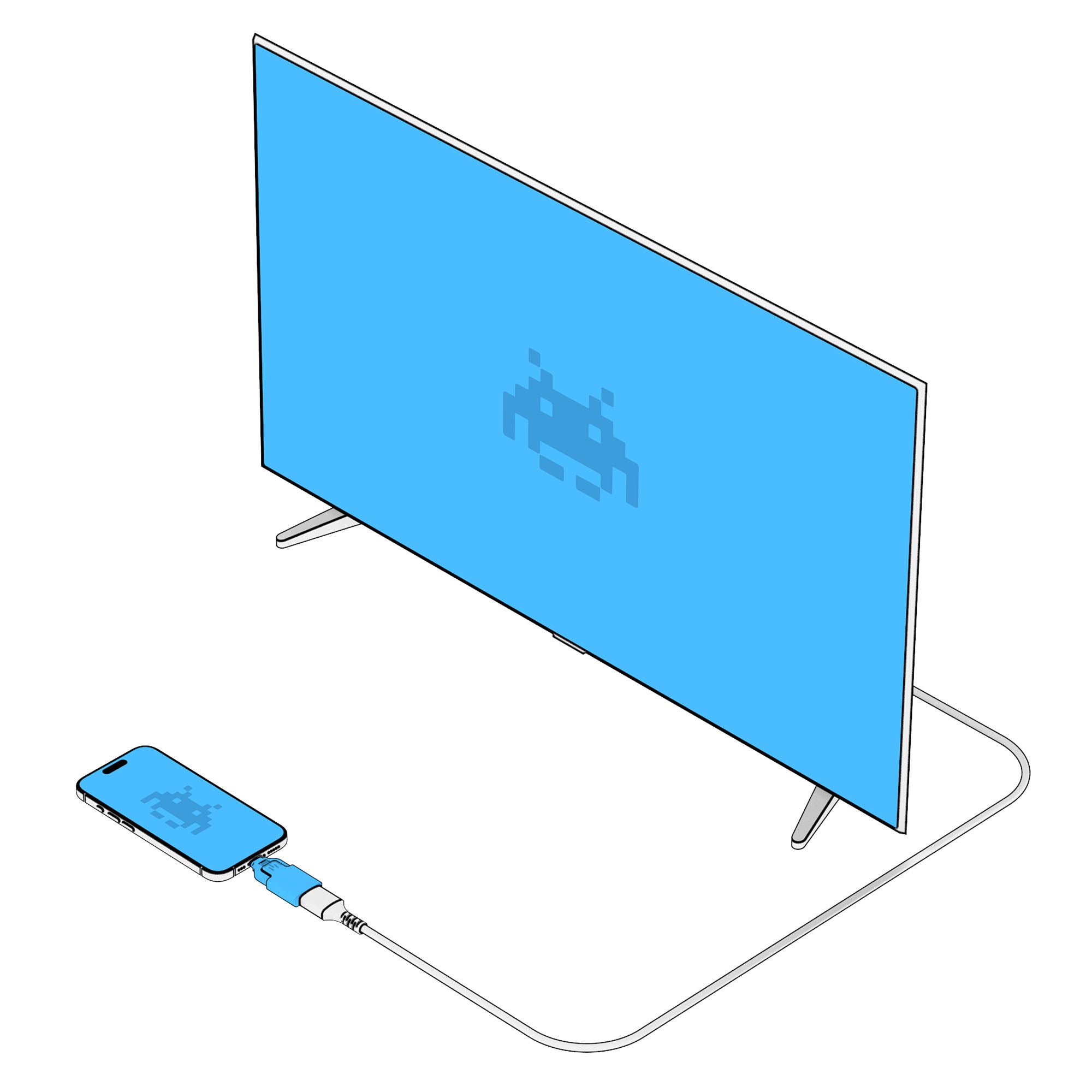

Turn on your phone, your phone screen should automatically cast to the external display, your screen must remain on for casting to stay active.

2.4GHz MODE

WHAT IS IT?

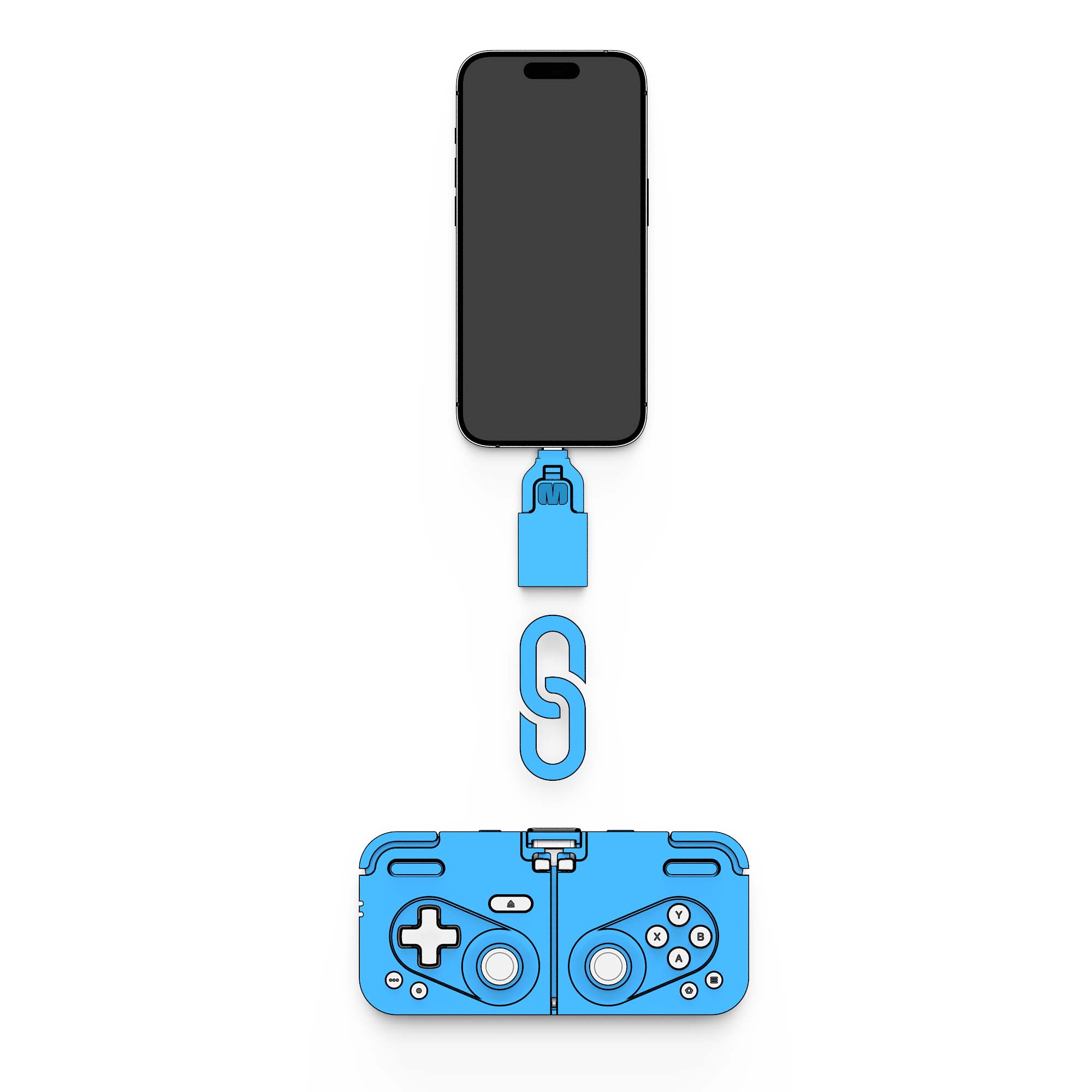

Key Cast uses a 2.4GHz connection to link your phone and MCON. This is faster and more reliable than standard Bluetooth.



- Faster Performance: You get less lag and better control over your gameplay.

Better Connection: The signal is stronger and more stable.

Plug-and-Play: Since it bypasses Bluetooth, you can switch devices instantly without having to "pair" them every time.

No Cable: You don't need an HDMI cable plugged in for the wireless features to work.



TLDR: It’s a faster, "no-hassle" wireless connection that makes your controller more responsive.



ACTIVATE

To activate, press and hold PAIR + DPAD DOWN for 5 secs until the bottom LED on your controller starts flashing. Your controller will automatically connect to any nearby Key Cast that is powered. Key Cast functions as a 2.4GHz receiver even without an HDMI cable.

ADDITIONAL INFO

  • The 2.4GHz will automatically connect to the controller when the receiver is plugged in and the controller is set to 2.4GHz mode.
  • The connection is 1 controller per receiver.
  • The receiver connects to the first controller it sees (in case there are multiple controllers), or vice versa if there are multiple receivers. If you are connecting to a receiver you don't want to be, then unplug it.

SWITCH INPUT MODES

To switch between XInput, Switch, and DS4 modes while using 2.4GHz, hold VIEW + MENU for 5 seconds.
